250V 3A Replacement Fuse for IR-300 Heat Lamp & KS-9800 TDP Lamp

Compatible Models

IR-300 Infrared Heat Lamp
KS-9800 TDP Lamp

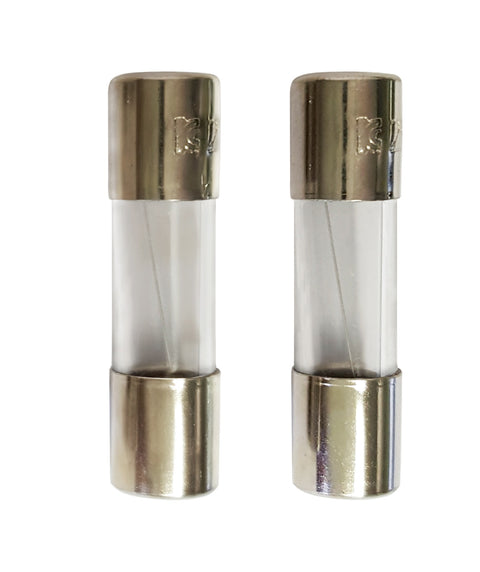

Specifications

Voltage: 250V
Current: 3A
Length: 19 mm (0.75")
Diameter: 4.5 mm (0.18")
Quantity: 2 pcs per bag

Important Compatibility Notice

Use this fuse only with the IR-300 and KS-9800 models. Do not use it with other lamp models. This 250V 3A fuse is not compatible with the KS-9800F TDP Lamp. The KS-9800F uses a 125V 3.15A fuse.

KS-9800 Fuse Replacement Instructions

If the orange indicator light on the KS-9800 does not turn on, the fuses may need to be checked or replaced.

Unplug the lamp from the electrical outlet.

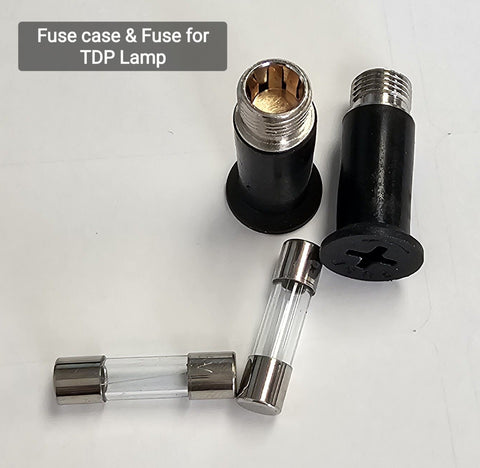

Locate the two fuse holders on the back of the control panel.
Use a Phillips-head screwdriver to open the fuse holders.
Remove the old fuses and replace them with new 250V 3A fuses.
Securely close the fuse holders before reconnecting the lamp to power.

IR-300 Fuse Replacement Instructions

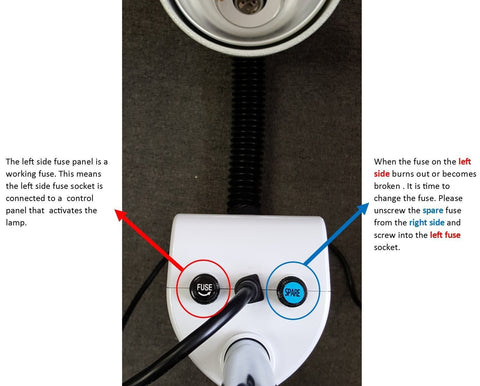

The IR-300 has two fuse holders located on the bottom of the control panel.

Left – FUSE: This is the active fuse connected to the lamp’s electrical circuit.
Right – SPARE: This holder stores a spare fuse and is not part of the operating circuit.

If the lamp does not turn on and the active fuse on the left has blown:

Unplug the lamp from the electrical outlet.

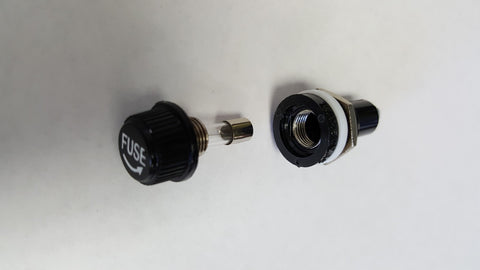

Open the left-side FUSE holder and remove the blown fuse.
Open the right-side SPARE holder and remove the spare fuse.
Insert the spare 250V 3A fuse into the left-side FUSE holder.
Securely close both fuse holders before reconnecting the lamp to power.

Important: The fuse stored in the right-side SPARE holder does not operate the lamp. It is provided only as a storage location for a replacement fuse.

If the replacement fuse blows again, discontinue use of the IR-300 lamp and inspect the unit for another possible cause. Repeated fuse failure may be associated with a worn or heat-damaged bulb socket, a damaged bulb contact, internal wiring, or another control-system issue.

Note: This product includes fuses only. Fuse Holder / Fuse Case is not included.

Fuses for Heat Lamp (IR-300) or TDP Lamp(KS-9800)
