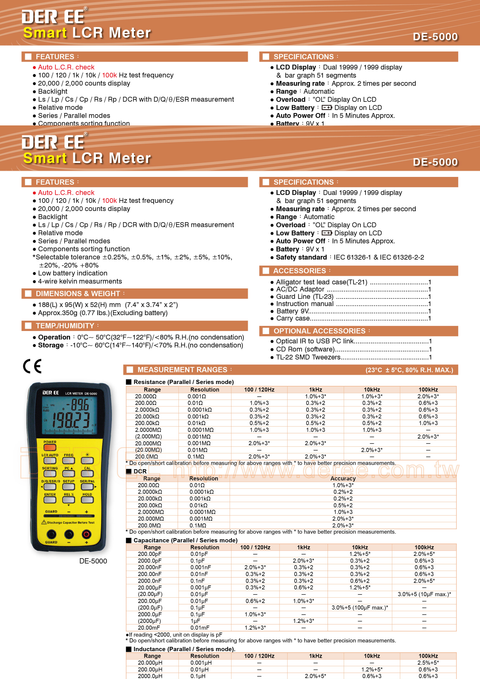

Parameters Measured：Ls/ Lp/ Cs/ Cp/ Rs/ R p/ D/ Q/ Θ/ ESR / L C R auto selection
LCD Display：Dual 19999/ 1999 display & bar graph 51 segment
Measuring rate：Approx. 2 times per second
Range：Automatic
Overload：”OL” Display On LCD
Low Battery： Display On LCD
Auto Power Off：In 5 Minutes Approx.
Battery：9V x1
Safety standard：IEC 61326-1 & IEC 61326-2-2

Features:

Auto L/C/R check
100 / 120 / 1K / 10K / 100K Hz test frequency
20,000 / 2,000 counts display
Backlight
Ls/ Lp/ Cs/ Cp/ Rs/ Rp/ DCR with D/Q/θ/ESR measurement
Relative mode
Series / Parallel modes
Components sorting function
*Selectable tolerance ±0.25%、±0.5%、± 1%、±2%、±5%、±10%、±20%、-20%+80%
Low battery indication
4-wire Kelvin measurement

Measurement Ranges：

Accuracy: ±(% of reading + number of least significant digits) at 23°C ± 5°C, <75% R.H.
1. Specifications are based on measurement performed at input sockets or terminals with Alligator Test Lead Case (TL-21) after short & open calibration.
2. DUT ( device under test ) & Test leads should be properly shielded to GUARD if necessary.
3. To make better precision measurements on extremely high or low impedance ranges of L,C,R, it is highly recommended that do OPEN/SHORT calibration before measuring for following ranges marked with *

Resistance(Parallel / Series mode)：

Range	Resolution	100/120Hz	1kHz	10kHz	100kHz
20.000Ω	0.001Ω	─	1.0%+3*	1.0%+3*	2.0%+3*
200.00Ω	0.01Ω	1.0%+3	0.3%+2	0.3%+2	0.6%+3
2.0000kΩ	0.0001kΩ	0.3%+2	0.3%+2	0.3%+2	0.6%+3
20.000kΩ	0.001kΩ	0.3%+2	0.3%+2	0.3%+2	0.6%+3
200.00kΩ	0.01kΩ	0.5%+2	0.5%+2	0.5%+2	1.0%+3
2.0000MΩ (2.000MΩ)	0.0001MΩ	1.0%+3	1.0%+3	1.0%+3	─
2.0000MΩ (2.000MΩ)	0.001MΩ	─	─	─	2.0%+3*
20.000MΩ (20.00MΩ)	0.001MΩ	2.0%+3*	2.0%+3*	─	─
20.000MΩ (20.00MΩ)	0.01MΩ	─	─	2.0%+3*	─
200.0MΩ	0.1MΩ	2.0%+3*	2.0%+3*	─	─

* Do open/short calibration before measuring for above ranges with * to have better precision measurements.

DCR

Range	Resolution	Accuracy
200.00Ω	0.01Ω	1.0%+3*
2.0000kΩ	0.0001kΩ	0.2%+2
20.000kΩ	0.001kΩ	0.2%+2
200.00kΩ	0.01kΩ	0.5%+2
2.0000MΩ	0.0001MΩ	1.0%+3
20.000MΩ	0.001MΩ	2.0%+3*
200.0MΩ	0.1MΩ	2.0%+3*

** Do open/short calibration before measuring for above ranges with * to have better precision measurements.

Capacitance (Parallel / Series mode)：

Range	Resolution	100/120Hz	1kHz	10kHz	100kHz
200.00pF	0.01pF	─	─	1.2%+5*	2.0%+5*
2000.0pF	0.1pF	─	2.0%+3*	0.3%+2	0.6%+3
20.000nF	0.001nF	2.0%+3*	0.3%+2	0.3%+2	0.6%+3
200.00nF	0.01nF	0.3%+2	0.3%+2	0.3%+2	0.6%+3
2000.0nF	0.1nF	0.3%+2	0.3%+2	0.6%+2	2.0%+5*
20.000μF (20.00μF)	0.001μF	0.3%+2	0.6%+2	1.2%+5*	─
20.000μF (20.00μF)	0.01μF	─	─	─	3.0%+5 (10μF max.)*
200.00μF (200.0μF)	0.01μF	0.6%+2	1.0%+3*	─	─
200.00μF (200.0μF)	0.1μF	─	─	3.0%+5 (100μF max.)*	─
2000.0μF (2000μF)	0.1μF	1.0%+3*	─	─	─
2000.0μF (2000μF)	1μF	─	1.2%+3*	─	─
20.00mF	0.01mF	1.2%+3*	─	─	─

*If reading <2000, unit on display is pF

* Do open/short calibration before measuring for above ranges with * to have better precision measurements.

Inductance (Parallel / Series mode).

Range	Resolution	100/120Hz	1kHz	10kHz	100kHz
20.000μH	0.001μH	─	─	─	2.5%+5*
200.00μH	0.01μH	─	─	1.2%+5*	0.6%+3
2000.0μH	0.1μH	─	2.0%+5*	0.6%+3	0.6%+3
20.000mH	0.001mH	1.2%+5*	1.0%+5	0.3%+2	0.6%+3
200.00mH	0.01mH	0.3%+2	0.6%+3	0.3%+2	1.2%+5*
2000.0mH	0.1mH	0.3%+2	0.3%+2	0.6%+3	─
20.000H	0.001H	0.3%+2	0.6%+3	1.2%+5*	─
200.0H	0.1H	0.6%+3	1.2%+5*	─	─
2.000KH	0.001KH	1.2%+5*	─	─	─

*If reading <2000, unit on display is μH

* Do open/short calibration before measuring for above ranges with * to have better precision measurements.

Accuracy v.s. Resistance (ZDUT)

	DCR	100/120Hz	1kHz	10kHz	100kHz
0.1~1Ω	1.2%+5*	1.2%+5*	1.2%+5*	1.2%+5*	2.5%+5*
1~10Ω	0.6%+3*	0.6%+3*	0.6%+3*	0.6%+3*	1.2%+5*
10~100kΩ	0.3%+2	0.3%+2	0.3%+2	0.3%+2	0.6%+3
100k~1MΩ	0.6%+3	0.6%+3	0.6%+3	0.6%+3	2.5%+5* 100k~2MΩ
1M~20MΩ	1.2%+5*	1.2%+5*	1.2%+5*	2.5%+5*	2.5%+5* 100k~2MΩ
>20MΩ	2.5%+5*	2.5%+5*	2.5%+5*	─	─

* Do open/short calibration before measuring for above ranges with * to have better precision measurements.

TEMP./Humidity：

Operation：0°C~ 50°C(32℉~122℉)/<70% R.H.(no condensation)
Storage：-20°C~ 60°C(-4℉~140℉)/<80%R.H.(no condensation)

Dimension & Weight：

188(L)x95(W)x52(H)mm
Approx.350g (excluding battery)

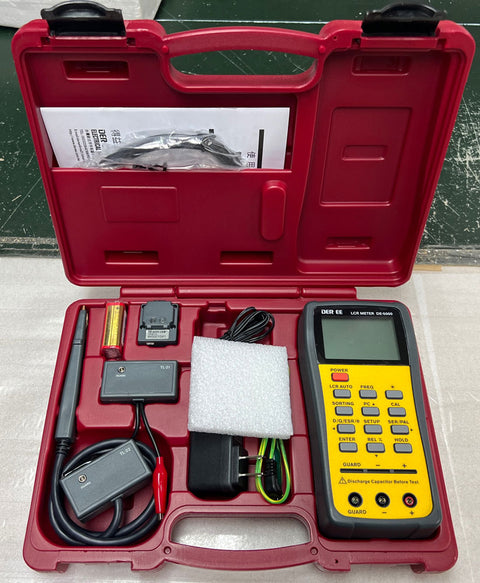

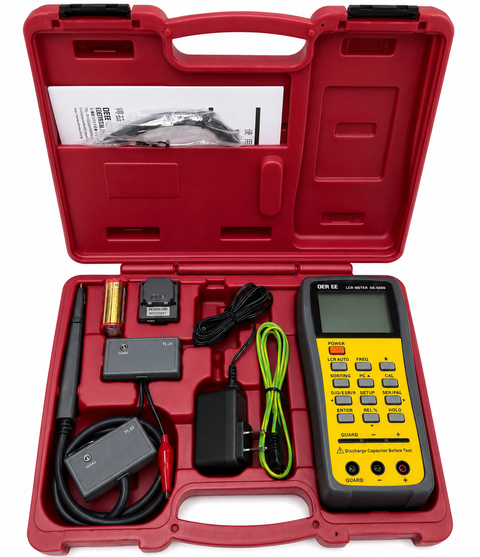

Accessories：

Alligator test lead case (TL-21) x 1
AC/DC Adaptor x 1
Guard Line (TL-23) x 1
TL-22 SMD Tweezers x 1
DC 9V Battery x1
Instruction Manual x1

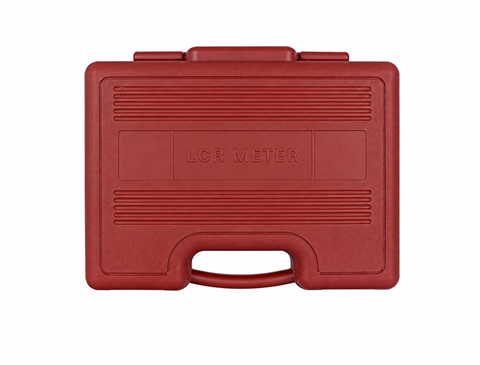

Carry case x 1

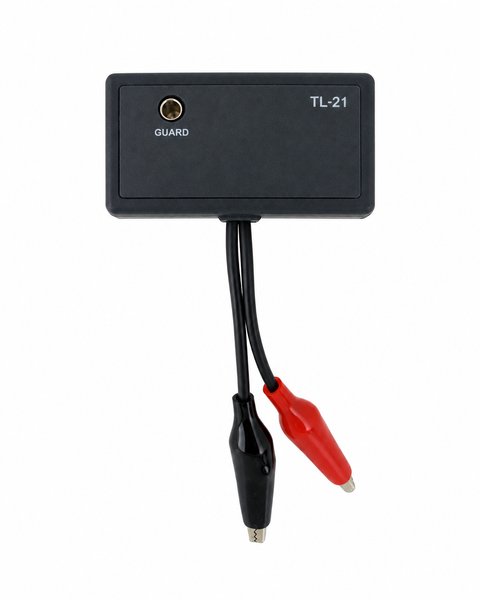

TL-21

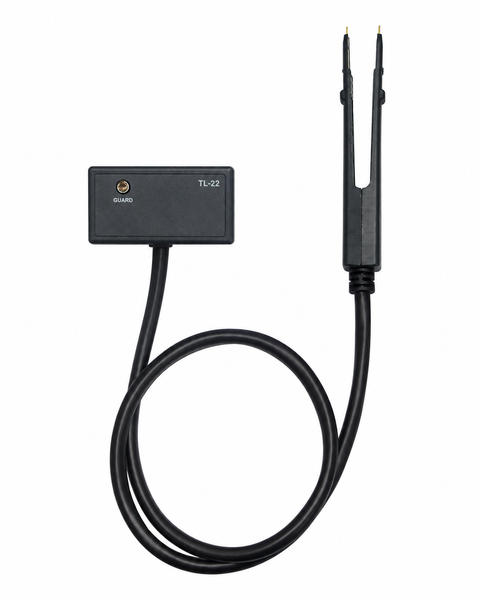

TL-22

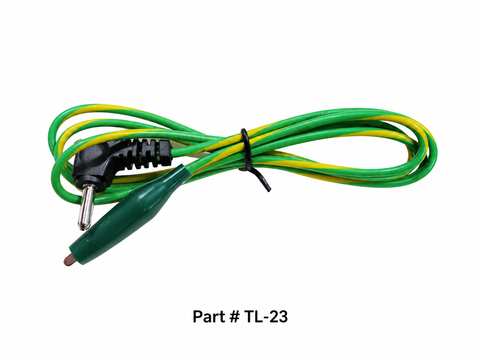

TL-23

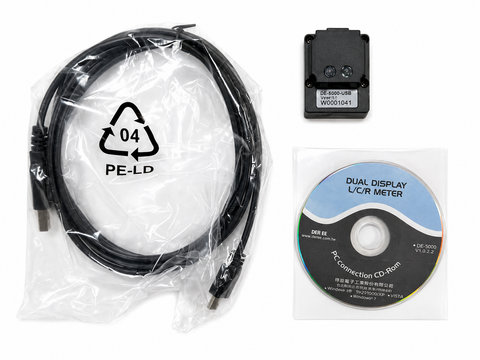

Additional Accessories for with USB Function：

Optical IR to USB PC link x 1
CD Rom (software) x

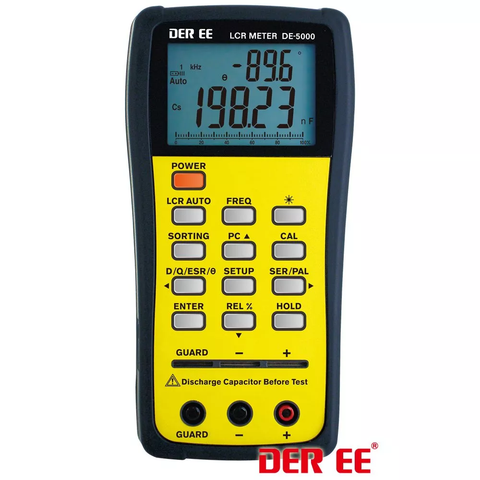

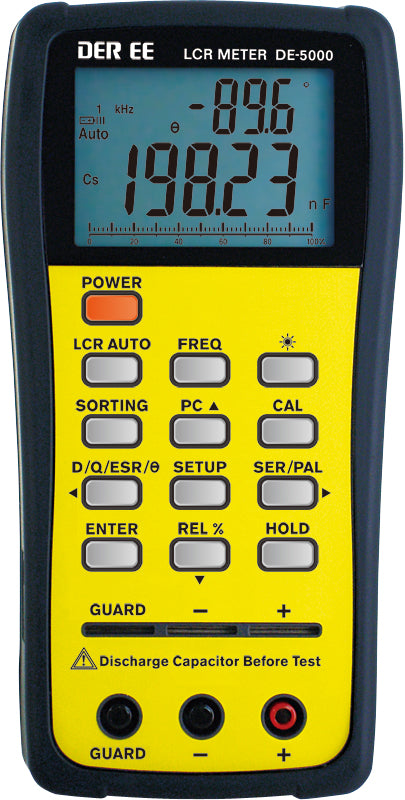

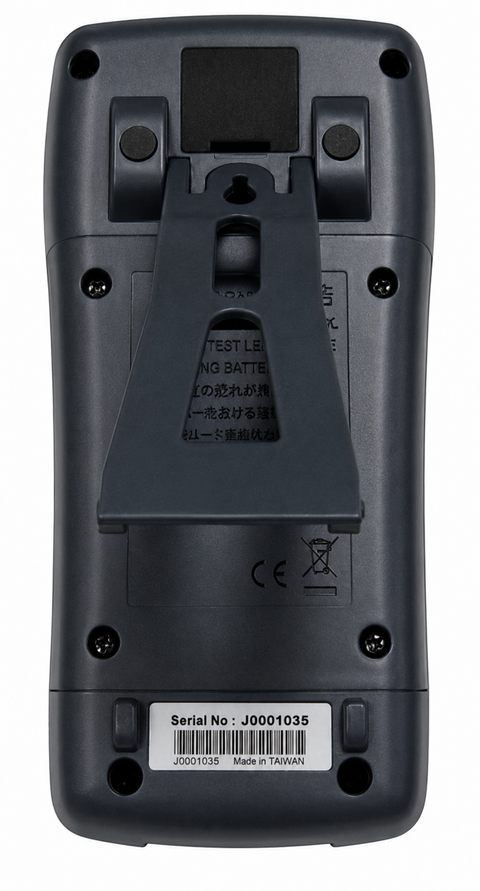

DE-5000 LCR Meter
