Circuit Board & Housing SET for Korea Techno's Extractor

[SPECIAL ORDER - REQUIRED]

해당 부속의 재고가 없을 경우, 제조사인 코리아 테크노에 EMS 직배송을 요청할 수 있으며, 이 경우 EMS 직배송비는 별도로 부과됩니다.
If this part is not in stock, we can request direct International shipment via EMS from the manufacturer, Korea Techno. In this case, the EMS shipping cost will be charged separately.

1. 기판 및 명판이 포함된 하우징 세트(Housing set including the circuit board and nameplate)

2. 기판은 명판이 포함되지 않으며, 녹색 기판(Circuit Board)만 제공됩니다.
The circuit board is provided without a nameplate; only the green circuit board is supplied.

How to use the circuit board

1. Press the power button(When the power button is turned on, the desired temperature and extraction time can be adjusted.)
2. ADJUSTING TEMPERATURE: Press the "Up" arrow to increase the temperature, and press the "Down" arrow to decrease the temperature
3. SETTING THE TIME: Set the desired extraction time by pressing the "Up" or "Down" arrows.
1) When pressing the "Start" button after setting up the desired temperature and time, the "Heating" light will turn on.
(The "Heating" light will turn off upon reaching the desired temperature. If the temperature is below the desired set temperature, the "Heating" light will turn on again.)
2) When pressing the "Start" button, the "Operation" light will turn on)
3) Once the set extraction time is completed, the "Finish" light will turn on
4. When you want to confirm the set-up temperature and set-up time during operation, press the "Schedule/Confirmation" button.
5. SCHEDULE: The temperature and extraction time can be set up in advance by pressing the "Schedule" button, then immediately followed by pressing the "Start" button.

** We do not recommend using the "Schedule" button to schedule an extraction in advance if the extractor will be left unattended.
** User must be present to monitor the extractor during operation. Please do not leave the extractor unattended while in use.

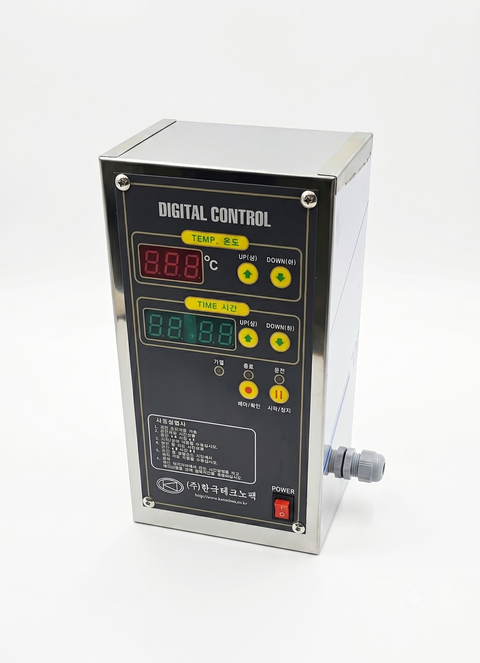

Techno Extractor - Digital Circuit Board
