Circuit Board for Korea Techno's Extractor

[SPECIAL ORDER - REQUIRED]

이 부속은 보유하고 있지 않습니다. 재고가 없으므로 한국테크노사에서 EMS로 직배송을 요청할 수 있습니다.

기판은 명판없이 녹색 기판(Circuit Board)만 제공됩니다.

How to use the circuit board

1. Press the power button(When the power button is turned on, the desired temperature and extraction time can be adjusted.)
2. ADJUSTING TEMPERATURE: Press the "Up" arrow to increase the temperature, Press the "Down" arrow to decrease the temperature
3. SETTING THE TIME : Set the desired extraction time by pressing the "Up" or "Down" arrows.
1) When pressing the "Start" button after setting up the desired temperature and time, the "Heating" light will turn on.
(The "Heating" light will turn off upon reaching the desired temperature. If the temperature is below the desired set temperature, the "Heating" light will turn on again.)
2) When pressing the "Start" button, the "Operation" light will turn on)
3) Once the set extraction time is completed, the "Finish" light will turn on
4. When you want to confirm the set-up temperature and set-up time during operation, press the "Schedule/Confirmation" button)
5. SCHEDULE : The temperature and extraction time can be set up in advance by pressing the "Schedule" button, then immediately follow by pressing the "Start" button.

** We do not recommend using the "Schedule" button to schedule an extraction in advance if the extractor will be left unattended.
** User must be present to monitor the extractor during operation. Please do not leave the extractor unattended while in use.

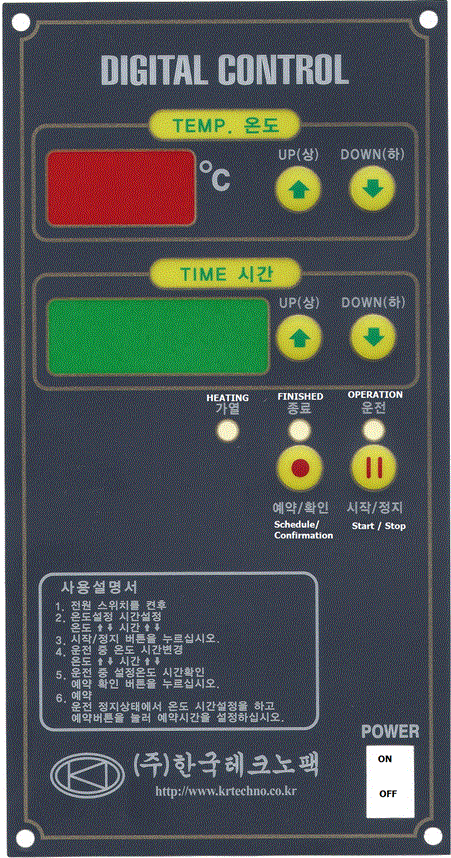

Techno Extractor - Digital Circuit Board 기판
