ES-130: 3 Output, Portable Electro-Acupuncture Device

Introducing the new ITO ES-130, this model replaces the popular IC-1107+. This new model is designed and calibrated to meet all essential safety and regulatory industry standards.

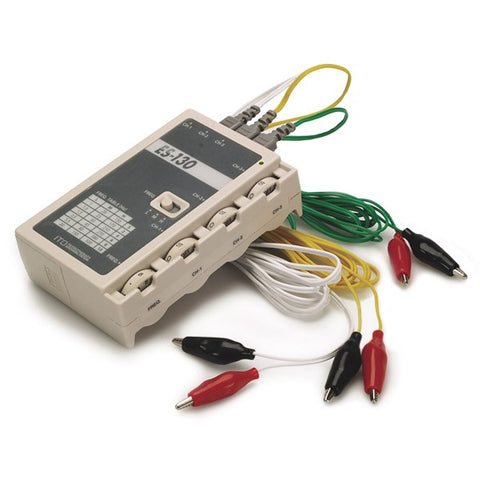

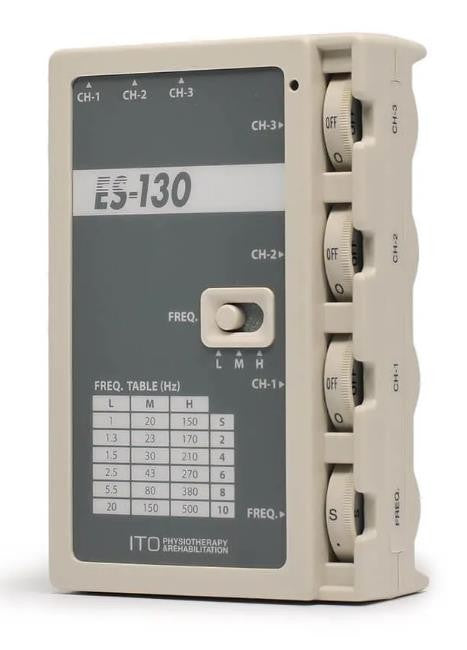

With its fresh new look, the ES-130 is a compact, lightweight, sturdy, palmsize, high quality Japanese electro-therapy device. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light. The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle. The pocket portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.

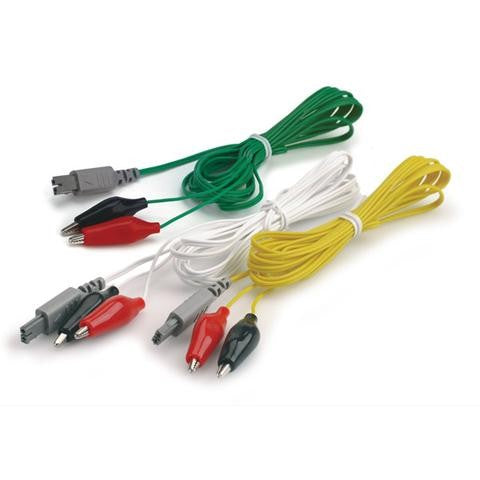

Accessories include 3 sets of new CE wire leads with rectangular CE jack, carrying case, and instructions. Does not include battery.

Converter Jack (sold separately) converts rectangular CE jack to 3.5mm jack for use with all 3.5mm jack accessories.

Note: When using 9-volt Duracell Batteries with the ES-130, a thin shim (or paper) must be placed at the bottom of the battery to make proper contact (ie, Duracell are shorter in length). Also, in order to use the built-in battery check (located on the back side of unit), power must be turned on.

Specifications                                 500 ohm test load
Output channels                             3 independent intensity channels
Frequency L - 1 to 20 Hz                L - 1 to 20 Hz
(adjusted with M - 20 to 150 Hz      M - 20 to 150 Hz
fine frequency dial)                          H - 150 to 500 Hz
Low volts & current                         0 to 10 volts, 0 to 20 milliamps
Hi volts & current                            0 to 20 volts, 0 to 40 milliamps
Voltage, max                                  30 volts (100 kohm load)
Pulse width                                    100 microseconds (킪)
Pulse shape                                   asymmetric biphasic square wave
Pulse mode                                    continuous
Power source                                 one 9 volt battery
Freq indicator                                  flashing red light
Size, wt, color                                 4.5" x 3.2" x 1.2", 0.3 lbs, gray
