Measurement Functions: ACA, ACV, DCV, Resistance, Diode, Buzzer
Clamp Size：φ30mm or 10x35mm
LCD Display：3 1/2 Digits LCD With 2000 Counts
Applicable Circuit Voltage: AC 600V or less
Sampling Reading Rate：3 Times/ Sec. Approx.
Range： Automatic
Applicable Height: Up to 2000m (above sea level)
Auto Power Off: Approx. 15 Minutes
Low Battery: Display on LCD
Battery: AA A Battery 1.5V x2
Safety standard: IEC 61010-1, IEC 61010-2-032 600V CAT III Pollution Degree 2

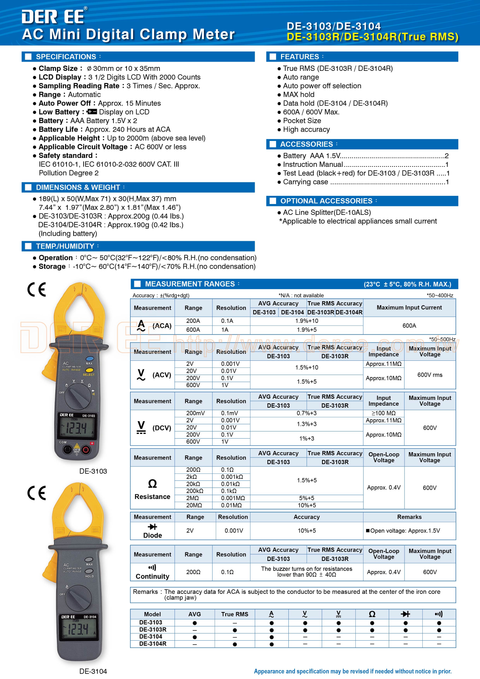

Measurement Ranges：

(23°C±5°C, 80%R.H. MAX.) Accuracy：±(%rdg+dgt)

Measurement	Range	Resolution	AVG Accuracy	True RMS Accuracy	Input Impedance	Open-Loop Voltage
			DE-3103	DE-3103R
(ACA)	200A	0.1A	1.9%+10		────
	600A	1A	1.9%+5
(ACV)	2V	0.001V	1.5%+10		Approx 11MΩ
	20V	0.01V			Approx 10MΩ
	200V	0.1V	1.5%+5
	600V	1V
(DCV)	200mV	0.1mV	0.7%+3		≥100MΩ
	2V	0.001V	1.3%+3		Approx 11MΩ
	20V	0.01V
	200V	0.1V	1%+3		Approx 10MΩ
	600V	1V
(Resistance)	200Ω	0.1Ω	1.5%+5		────	Approx >0.4V
	2kΩ	0.001kΩ
	20kΩ	0.01kΩ
	200kΩ	0.1kΩ
	2MΩ	0.001MΩ	5%+5
	20MΩ	0.01MΩ	10%+5
(DIODE)	2V	0.001V	10%+5		────	Approx 1.5V
(BUZZER)	200Ω	0.1Ω	The buzzer turns on for resistances lower than 90Ω±40Ω		────	0.4V

※Remarks：The accuracy data for ACA is subject to the conductor to be measured at the center of the iron core (clamp jaw)

TEMP./Humidity：

Dimension & Weight：

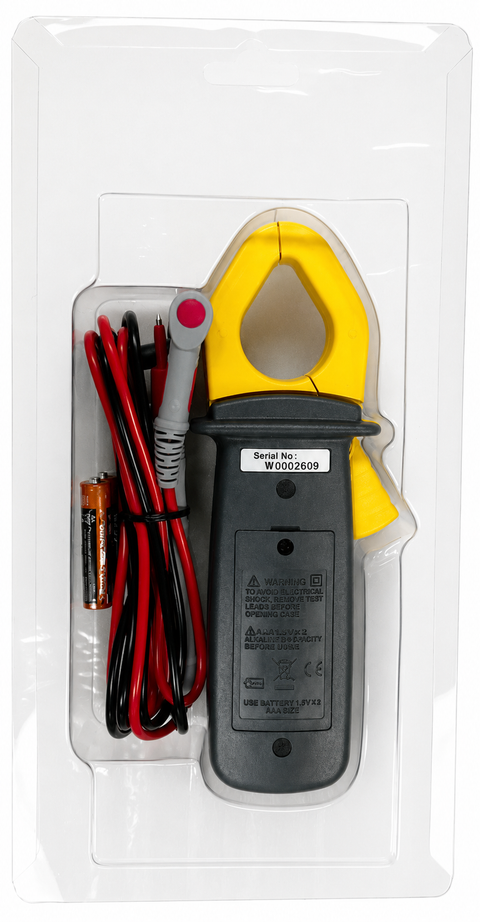

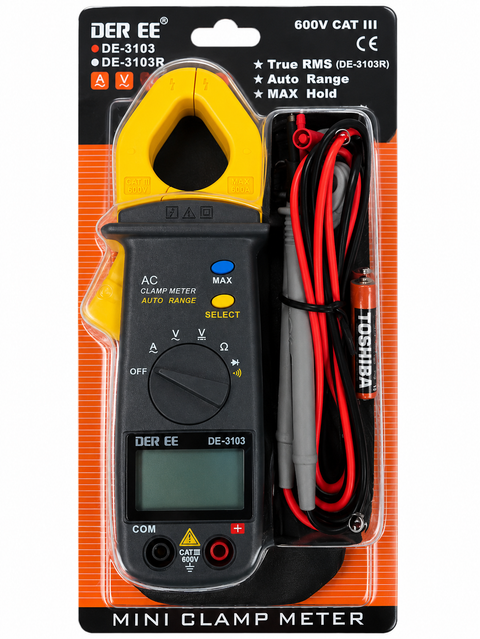

Accessories：

Optional Accessories：

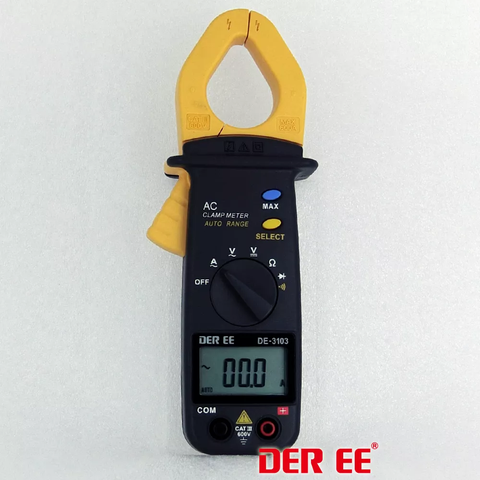

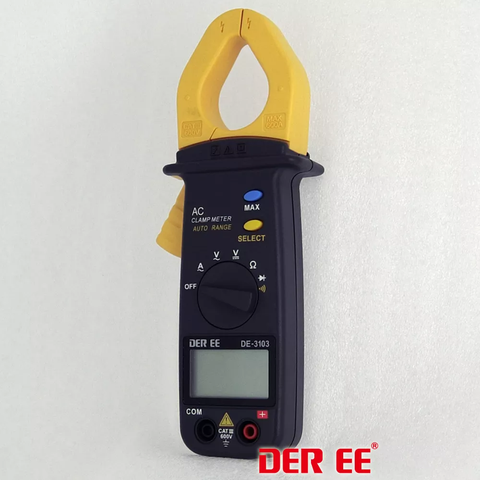

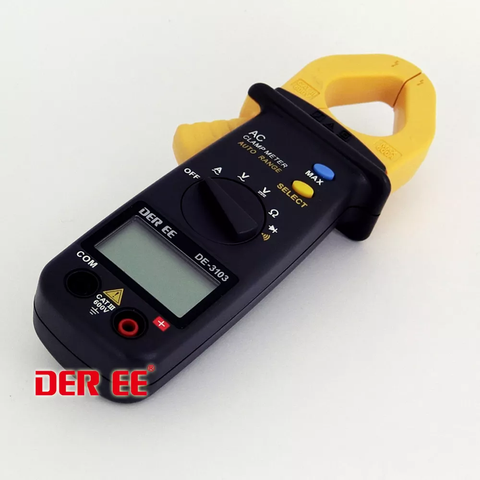

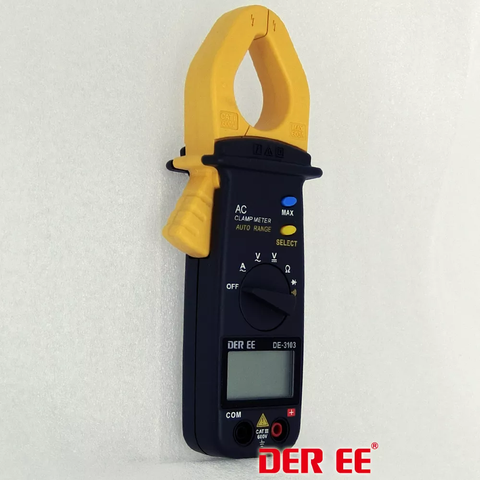

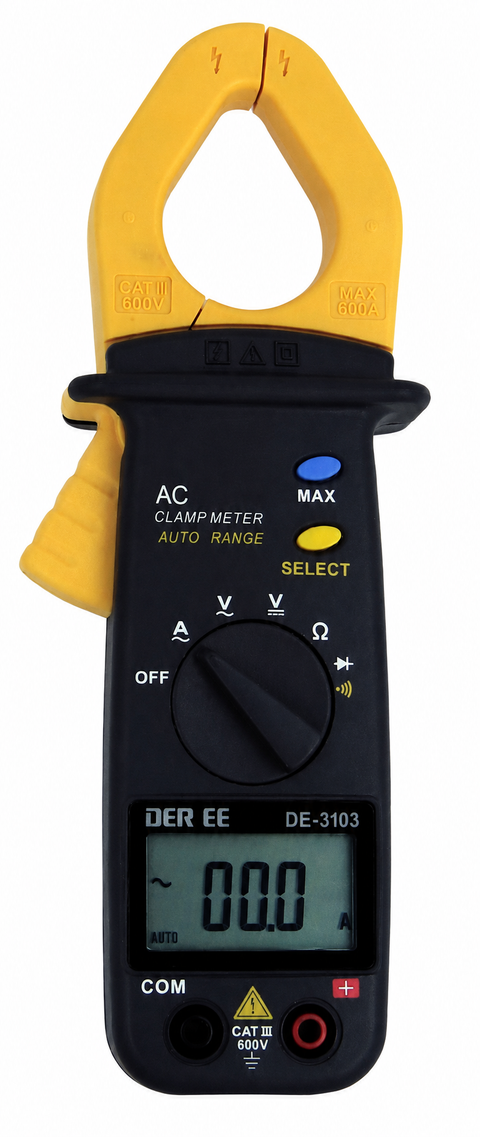

DE-3103 AC Clamp Meter (Pocket Size)
